AIR CONDITIONING INSTALLATION IN Benson & Tucson, AZ
Pima County will not issue a mechanical permit for a changeout without Manual J, S, and D calculations attached as a PDF, and the selected equipment has to land within 6,000 Btu per hour of the design sensible load. Abbey Aire and Building Repair installs to that standard across Benson & Tucson, AZ, plus Vail, Marana, and Oro Valley.
SIZING DECIDES EVERYTHING THAT HAPPENS AFTERWARD.
An oversized air conditioner satisfies the thermostat quickly, then shuts off before it has pulled much moisture out of the air. An undersized one never catches up on a design day. Manual S selection targets 95 to 115 percent of the calculated load, which is why the load calculation comes before the equipment order rather than after it.
Square footage alone will not get you there. Window area, orientation, insulation levels, duct location, and infiltration all move the number, sometimes by a full ton on the same floor plan.
- Manual J load calculation on every install
- Equipment matched with a Manual S selection
- Ductwork evaluated before the order is placed
- 1-year labor warranty on new installations
YOUR HOME STAYS SELLABLE
Active leaks and visible water damage kill inspection reports. A documented repair history reassures buyers, appraisers, and insurers that the roof over the property has been looked after.
AIR CONDITIONING INSTALLATION
A NEW SYSTEM SHOULD FEEL DIFFERENT, NOT JUST NEWER.
The difference between an adequate installation and a good one shows up in the details nobody sees. A properly pitched line set, a sealed and insulated plenum, a condensate line with a real trap and a float switch, an outdoor pad that stays level through monsoon runoff. These decisions do not appear on the invoice, and they decide whether the system still performs the way it did in year one.
SOUTHWEST RULES ARE ENFORCED AT INSTALL, NOT AT THE FACTORY.
Arizona sits in the Southwest efficiency region, where a split system under 45,000 Btu per hour has to meet 14.3 SEER2 and an 11.7 EER2 floor at the point of installation. That EER2 requirement exists because peak performance at 95 degrees matters more here than seasonal averages do. We verify the rating on the selected outdoor and indoor combination before anything ships to the job.
35 YEARS OF SIZING SYSTEMS TO THE HOUSE, NOT THE CATALOG.
Rules of thumb built a lot of oversized systems in this valley, and the owners live with short cycling and clammy rooms every monsoon. Across 35+ years and two generations, we have replaced enough of them to know that the load calculation is not paperwork. It is the difference between equipment that holds 78 degrees on a 106 degree afternoon and equipment that simply runs. What does your house actually need?
WHY CHOOSE US FOR AIR CONDITIONING INSTALLATION.
Equipment That Fits the House
A load calculation done room by room means the system you get matches the building you own, so it holds temperature on design days without cycling itself to death in April.
Ductwork Handled, Not Ignored
Bolting a new condenser onto tired ducts wastes most of the upgrade. Existing duct is measured, and any undersized or leaking sections get addressed as part of the quote rather than discovered later.
Permits and Paperwork Managed
Where a jurisdiction requires calculations and a permit, that package gets prepared and submitted for you. Inspection scheduling comes with it, so nothing stalls between the install and the sign-off.
A Quiet, Clean Changeout
Old equipment leaves the property, pads get set level, and the mess goes with us. Most residential changeouts finish inside a single day, so you sleep in your own house that night.
Commissioned, Not Just Connected
Startup includes charge weighed to the manufacturer's figure, airflow set by measurement, and a full performance check. You get the commissioning numbers, which is the only proof the system was set up correctly.
Warranty Coverage That Holds
New installations carry a 1-year labor warranty alongside the manufacturer's parts coverage. Registration is handled for you, because an unregistered unit quietly loses years of coverage nobody notices until something fails.
WHAT WE INSTALL
OUR AIR CONDITIONING INSTALLATION WORK
Every installation is a sequence, and skipping any part of it shows up later. These six areas make up the work, from the first load calculation to the commissioning readings handed over at the end.
LOAD DESIGN
Manual J Load Calculations
Room-by-room heat gain gets calculated from real inputs: wall and roof assemblies, glazing area and orientation, ceiling heights, infiltration, and duct location. The result is a number rather than an estimate based on square footage.
EQUIPMENT MATCH
System Selection and Sizing
Outdoor and indoor units are matched as a rated combination, not mixed by convenience. Capacity is checked against the calculated load, and the efficiency rating is verified against the standards enforced in this region.
AIR DELIVERY
Duct Evaluation and Modification
Trunk and branch sizing gets compared against the airflow the new equipment needs. Undersized runs, crushed flex, unsealed boots, and leaking plenum connections are corrected so the capacity you paid for reaches the rooms.
SET AND CONNECT
Condenser and Air Handler Installation

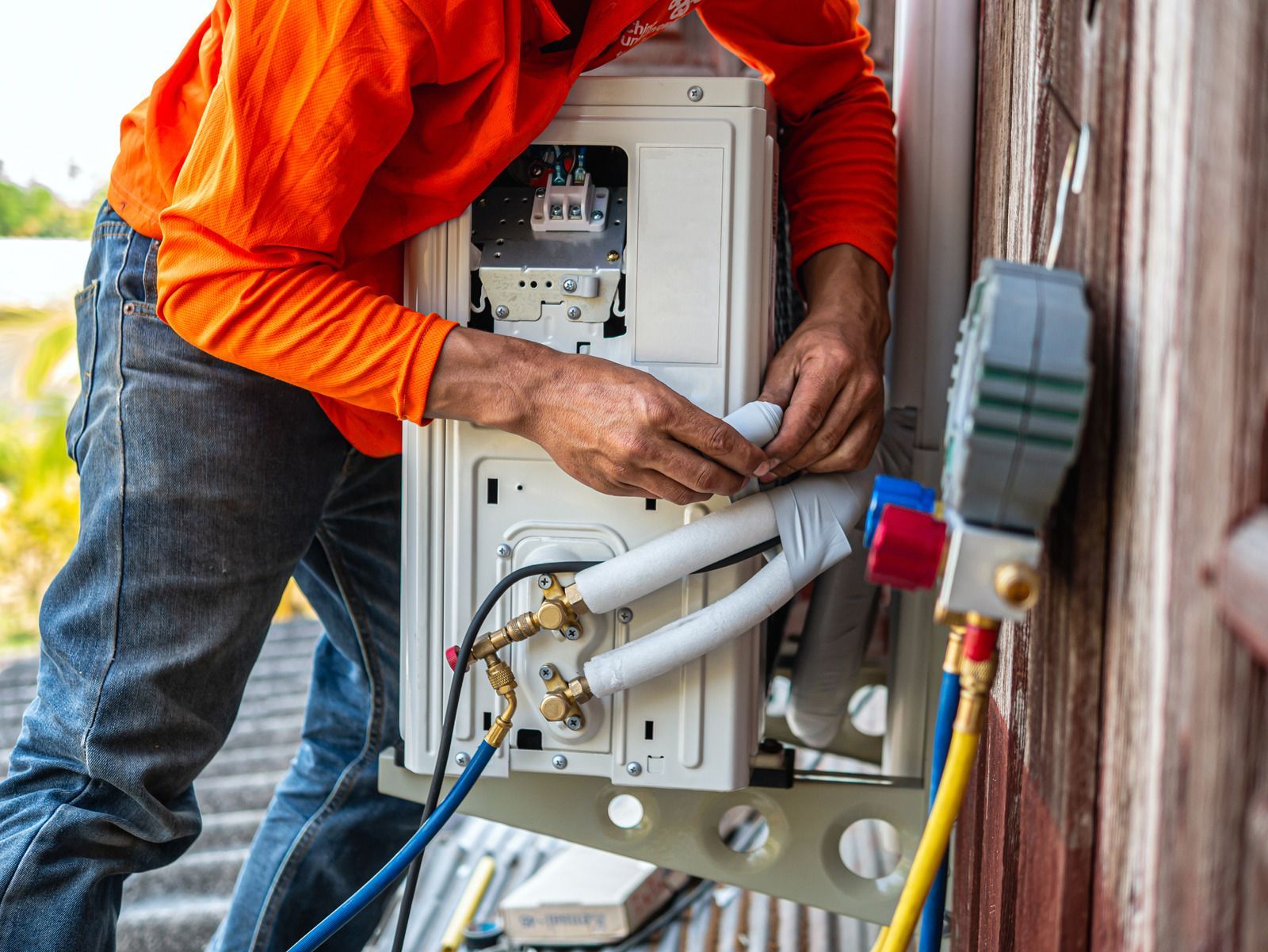

Pads are leveled for monsoon runoff, line sets are routed and insulated properly, and electrical is landed on a correctly sized disconnect. Indoor equipment gets sealed to the plenum instead of taped and hoped.
EVACUATE AND CHARGE
Startup and Commissioning

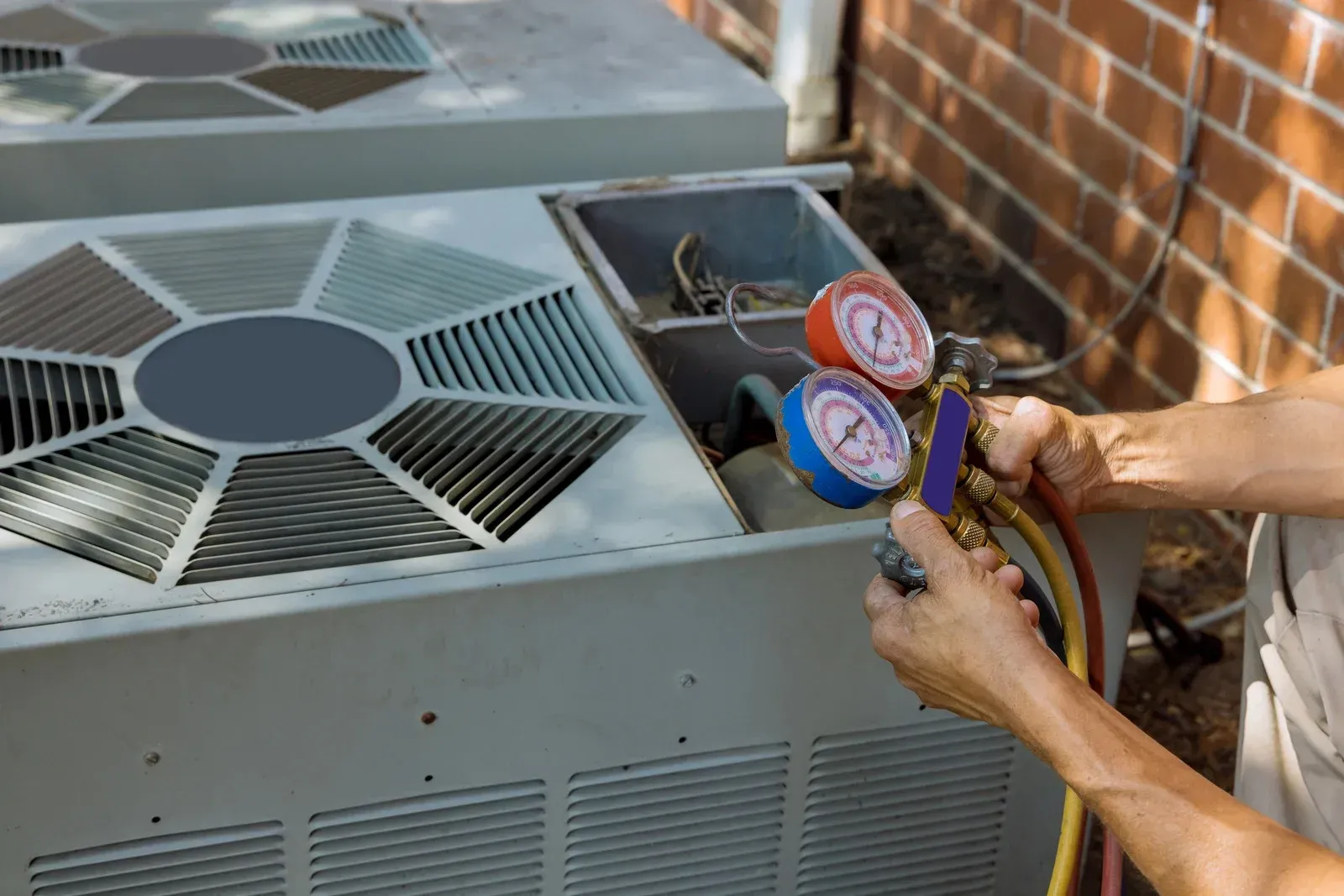

Refrigerant lines are evacuated to a deep vacuum and held before charging. Charge is weighed in, airflow is set by measurement, and the finished readings are recorded so future service has a baseline to compare against.
CONTROLS SETUP
Thermostat Installation and Configuration
New controls get wired, configured for the equipment staging, and set up on the schedule you actually keep. Smart models are connected to the network and tested before anyone leaves the property.
faq
frequently asked
questions.
What homeowners ask before committing to a new system, answered plainly. Anything tied to your specific floor plan is better settled with a load calculation than with a general rule.
What size AC do I need for my house?
Only a load calculation answers that honestly. Two houses with identical square footage can differ by a full ton once glazing, orientation, insulation, and duct location are accounted for, which is why the calculation comes first.
Do I need a permit to install a new AC unit?
In Pima County a changeout requires a mechanical permit with Manual J, S, and D calculations submitted. Abbey Aire and Building Repair prepares that package for installations across Tucson, AZ, and confirms local requirements before scheduling.
How long does it take to install an AC unit?
A straight residential changeout normally runs a single working day. Adding duct modifications, electrical upgrades, or a new pad and line set can push it into a second day, which we flag in the quote.
Should I replace my AC and furnace at the same time?
Usually yes, when both are near the end of their service life. Matched equipment holds its rated efficiency, and doing one now and the other in 2 years means paying for the same labor twice.
What SEER rating should I buy?
Start at the regional floor of 14.3 SEER2 and decide from runtime. In a climate with this much cooling load, a higher rating pays back faster than it would in a mild region, within reason.
What are common AC installation mistakes?
Oversizing tops the list, followed by reusing undersized ductwork, skipping a proper evacuation, and charging by pressure instead of weight. Each one is invisible on day one and expensive by the third summer.
Will a new AC unit lower my electric bill?
Generally yes, though duct leakage and insulation limit how much. Abbey Aire and Building Repair measures duct performance during installations in Benson, AZ, because a leaking system undercuts the savings a higher efficiency rating promises.
Is it cheaper to replace the furnace and AC together?
On labor, yes. The crew is already on site, the plenum and line set work overlaps, and a single permit often covers both. Replacing them separately duplicates setup, teardown, and inspection time.
HOW WE WORK
FROM LOAD CALCULATION TO COMMISSIONING, HERE IS HOW.
STEP 01
Home Assessment
We walk the house, measure the envelope, check the existing ducts, and note where the equipment lives. That visit produces the inputs for the load calculation, and it usually turns up two or three issues nobody mentioned.
STEP 02
Load Calculation and Selection
The numbers get run, then equipment is selected to match rather than to fill a price point. You see the calculated load and the capacity of what we are proposing, side by side, before deciding.
STEP 03
Written Proposal
Scope, equipment model numbers, duct work, electrical, permit handling, and warranty terms all appear in writing. Options at different efficiency levels come priced separately so the comparison is straightforward rather than a sales conversation.
STEP 04
Permitting and Scheduling
Calculations and drawings go to the jurisdiction, and the install date is set once approval is in hand. You get the timeline, the crew size, and what to expect on the day in advance.
STEP 05
Installation Day
Old equipment comes out, the new system goes in, ducts and electrical get corrected where the quote called for it, and the property is protected throughout. Debris and packaging leave with the truck.
STEP 06
Commissioning and Handover
Evacuation, weighed charge, airflow setting, and a full performance check finish the job. You receive the readings, the warranty registration, the thermostat walkthrough, and a maintenance schedule built for this climate and this dust.
GET YOUR ESTIMATE
A SYSTEM SIZED FOR YOUR HOUSE, PRICED IN WRITING.
A good installation is quiet, holds temperature, and gives you nothing to think about for years. Send your details through the contact page and Abbey Aire and Building Repair will start with the load calculation in Benson & Tucson, AZ.
WHAT YOUR INSTALLATION QUOTE COVERS:
- A room-by-room Manual J load calculation
- Matched equipment with the rating verified
- Duct findings and any corrections priced
- Permit preparation where the jurisdiction requires it
- Commissioning readings handed over at completion
- A 1-year labor warranty on the installation
