Mini Split Install, Repair & Replacement
MINI SPLIT INSTALL, REPAIR & REPLACEMENT IN Benson & Tucson, AZ
Manufacturers such as Mitsubishi specify evacuation to 500 microns held there for a full hour, and additional charge weighed in at roughly 0.21 ounces per foot of quarter-inch liquid line run. Abbey Aire and Building Repair installs, repairs, and replaces ductless mini split systems to those figures across Benson & Tucson, AZ, Vail, Marana, Oro Valley, St. David, and Sahuarita.
A DUCTLESS SYSTEM IS ONLY AS GOOD AS ITS INSTALLATION.
The equipment is excellent and the failure rate is almost entirely installer-driven. Line sets cut too long, charge added by pressure instead of weight, a vacuum pulled for 10 minutes rather than an hour, flare joints that were never torqued. Every one of those shows up 2 summers later as a system that no longer cools.
We follow the manufacturer's installation manual rather than the habits of the trade, because the manual is what the warranty is written against and what the equipment was actually designed around.
- Evacuation held at 500 microns and verified
- Charge weighed to the manufacturer's per-foot figure
- Line set length and lift checked against the spec
- 1-year labor warranty on new installations
YOUR HOME STAYS SELLABLE
Active leaks and visible water damage kill inspection reports. A documented repair history reassures buyers, appraisers, and insurers that the roof over the property has been looked after.
MINI SPLIT INSTALL, REPAIR & REPLACEMENT
DUCTLESS SOLVES PROBLEMS DUCTWORK CANNOT.
Casitas, converted garages, additions built off the original trunk line, workshops, and the one bedroom that has never held temperature. These are the spaces where extending ductwork costs far more than it delivers. A ductless head puts capacity exactly where the load is, with no duct losses between the equipment and the room, and it heats as well as it cools, on the same refrigerant circuit.
LINE SET LENGTH IS A LIMIT, NOT A SUGGESTION.
Single-zone units up to 12,000 Btu per hour typically allow 65 feet of line set and 40 feet of height difference, with larger capacities allowing more. Exceed those figures and capacity falls, oil return suffers, and the compressor pays for it. Long runs on sprawling desert lots make this a real constraint here, so we measure the route before committing to an outdoor location.
OUR VACUUM PUMP STAYS UNTIL THE GAUGE HOLDS.
A micron gauge either holds below 500 or it does not, and no amount of experience talks it into holding. Moisture and air left in a ductless circuit form acid, damage the compressor windings, and void the warranty quietly. Across 35+ years we have watched enough of those failures to treat the evacuation step as the part of the job that cannot be rushed. Was yours held for an hour?
WHY CHOOSE US FOR MINI SPLIT INSTALL, REPAIR & REPLACEMENT.
Zone-by-Zone Comfort
Each head runs on its own setpoint, so the workshop can sit at 80 while the bedroom holds 74. Nobody pays to condition a room that is empty all afternoon.
No Duct Losses
Conditioned air travels a few feet instead of through an attic at 140 degrees. Removing the ductwork removes the leakage, the heat gain, and the balancing problems that come with it.
Installed to the Manual
Line lengths, height limits, torque values, evacuation targets, and per-foot charge figures all come from the manufacturer's documentation. Following it is what keeps the warranty valid and the compressor alive.
Quiet Where It Matters
Indoor heads run considerably quieter than a central air handler cycling on and off. In a bedroom or a home office, that difference is noticeable from the first night onward.
Heating Without a Furnace
Ductless heat pumps cover winter in most of this service area without any gas appliance at all. For a casita or an addition, that removes venting, gas lines, and combustion safety entirely.
Repairs Without the Runaround
Ductless faults get diagnosed with the same instruments and the same manual the installation followed. Error codes are read against the service documentation rather than interpreted from a forum post.
WHAT WE INSTALL
OUR MINI SPLIT INSTALL, REPAIR & REPLACEMENT WORK
Ductless work covers six areas from first survey through repair of an existing system. The details that decide long-term performance all sit in the refrigerant piping, and none of them are visible afterward.
SINGLE ZONE

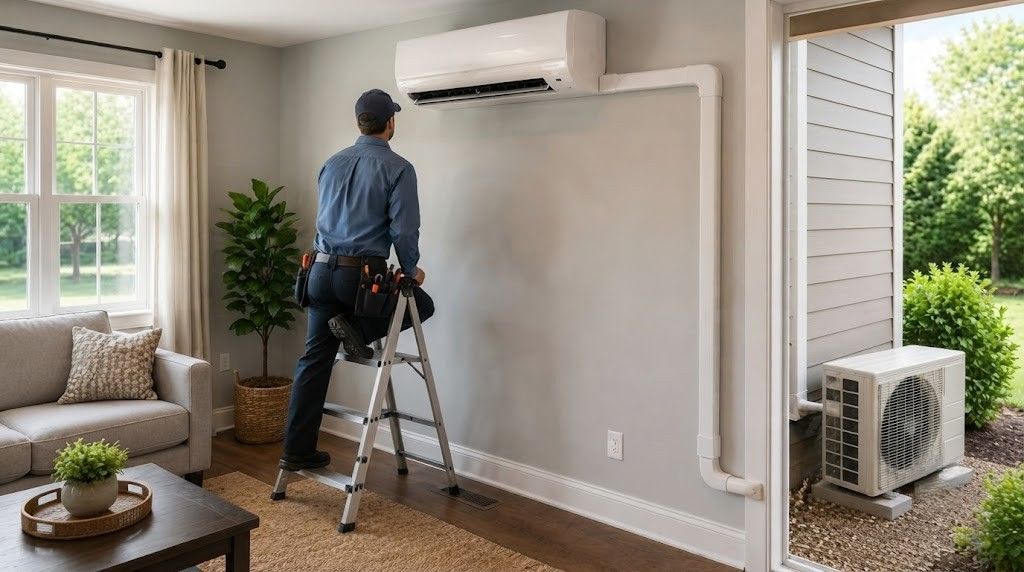

Single-Zone Mini Split Installation
One outdoor unit paired to one indoor head suits a casita, a garage conversion, or a single problem room. Sizing comes from that room's load rather than from the nearest available capacity.
MULTI ZONE

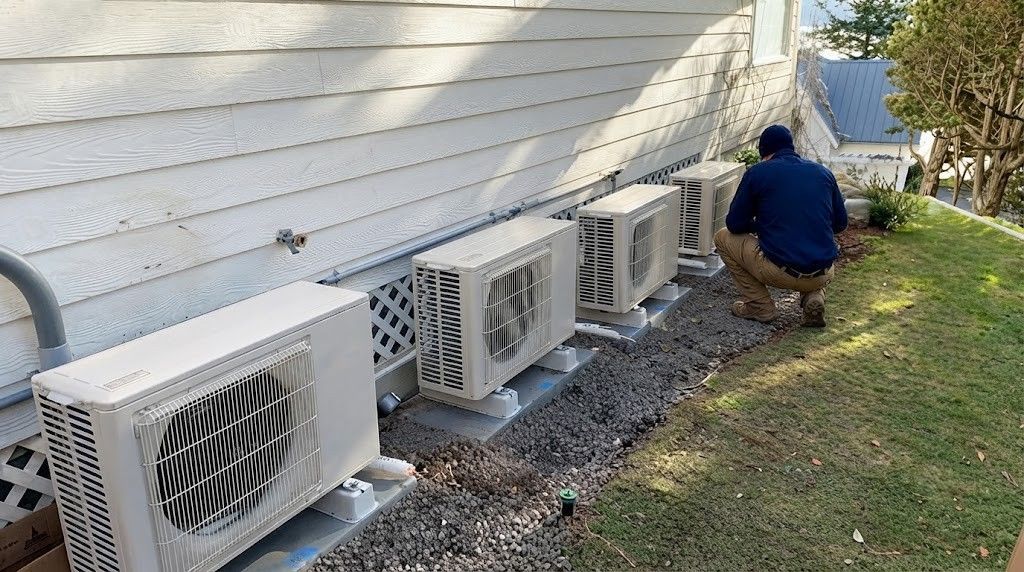

Multi-Zone System Design and Installation
Multiple heads on one condenser require total line length, per-zone limits, and combined capacity to all stay within the manufacturer's published envelope. Those figures get checked before the equipment is ordered.
PIPING WORK

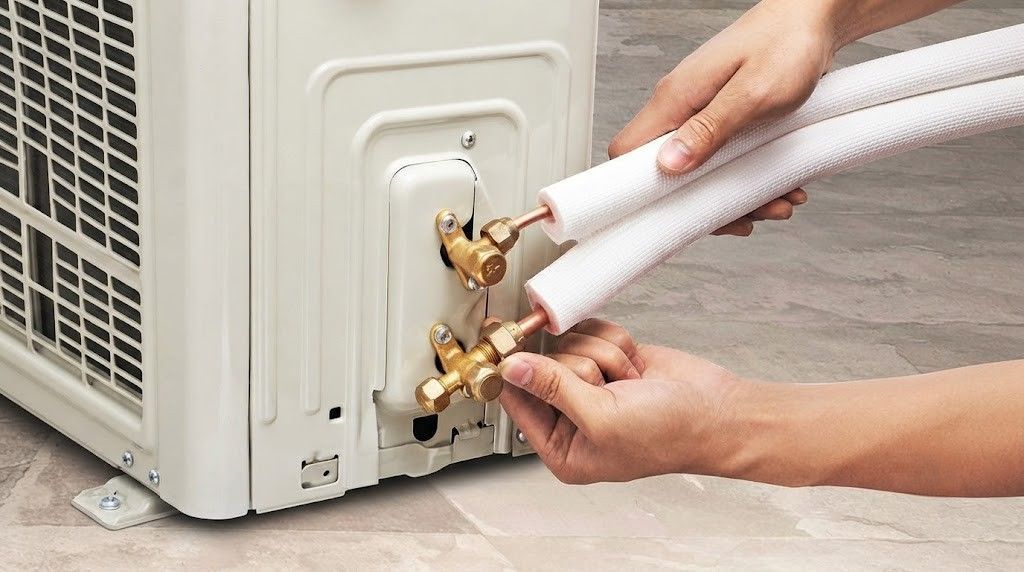

Line Set Routing and Flare Connections
Routes are planned for the shortest practical run, flares are cut and torqued to specification, and insulation is continuous. A single under-torqued flare is enough to empty a circuit over a season.
FAULT FINDING

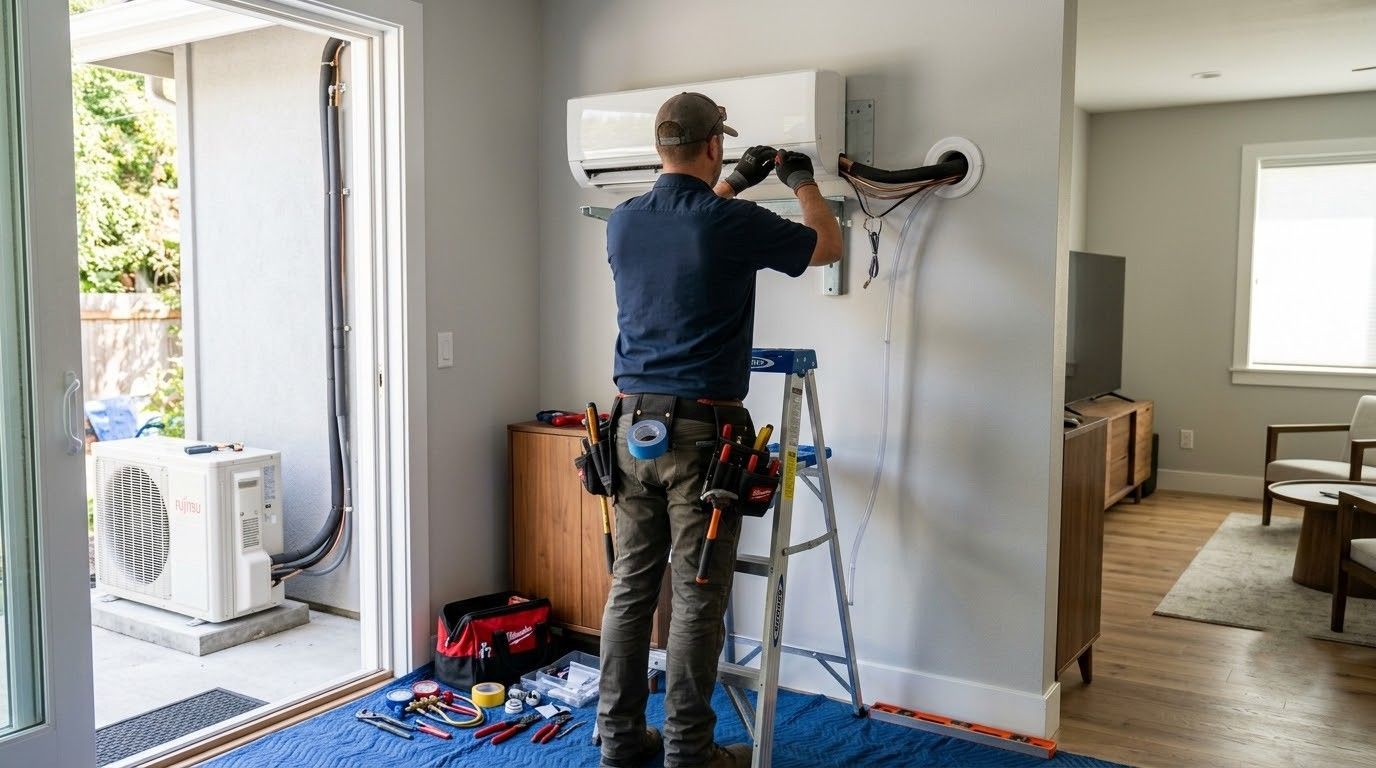

Ductless Diagnostics and Repair
Error codes, sensor readings, and inverter board diagnostics narrow the fault before parts are ordered. Communication faults between indoor and outdoor units are common and frequently trace to wiring rather than boards.
COIL CARE

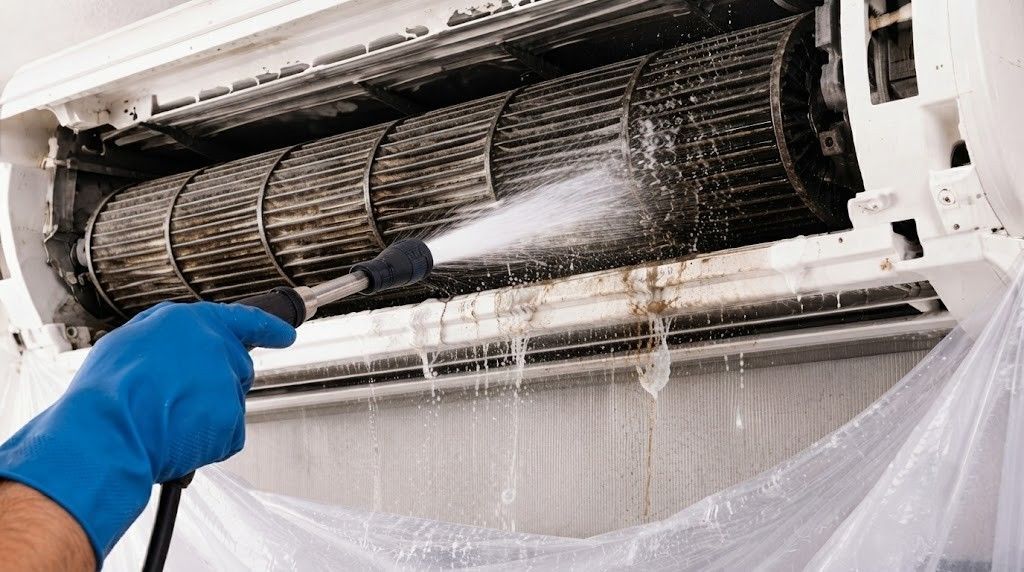

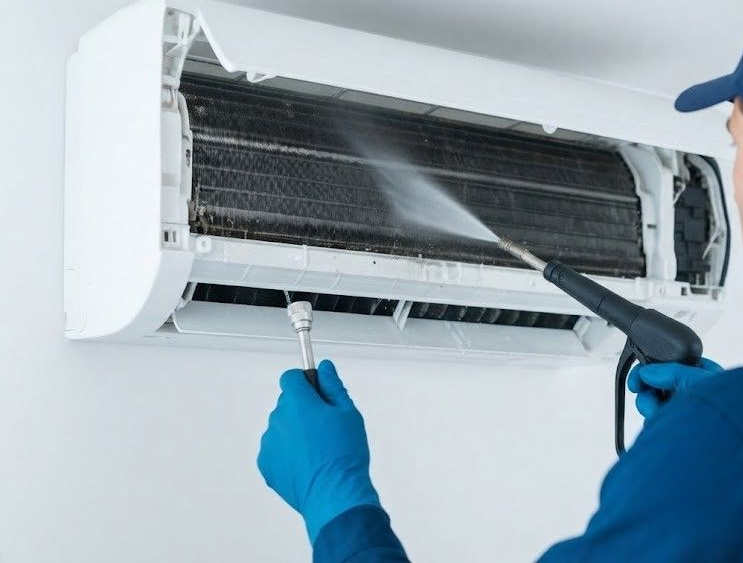

Indoor Head Cleaning and Blower Service
Ductless heads collect dust on the blower wheel and the coil, and desert conditions accelerate that. Deep cleaning restores airflow and removes the odor that builds inside a neglected indoor unit.
SYSTEM SWAPS
Mini Split Replacement and Upgrade
Older ductless equipment running discontinued refrigerants or failed inverter boards often costs more to repair than to replace. Existing line sets are assessed for reuse, flushing, or replacement before the changeout.
faq
frequently asked
questions.
Ductless questions from owners weighing a first system and from those living with one already. Manufacturer specifications differ, so a few of these answers depend on the brand in front of us.
How do you install a mini split air conditioner?
Mount the indoor head, core a wall penetration, set the outdoor unit, run and flare the line set, wire the communication cable, evacuate the circuit, then weigh in any additional charge and commission it.
Can I install a mini split myself?
Refrigerant handling requires certification, and a proper evacuation requires equipment most homeowners do not own. Pre-charged kits exist, though a poorly made flare joint fails months later with no recourse.
How long does it take to install a mini split?
A single-zone system generally takes most of a day including the hour-long evacuation. Abbey Aire and Building Repair schedules multi-zone installations across Benson & Tucson, AZ over 2 days so nothing gets rushed at the end.
What are common issues with ductless mini splits?
Refrigerant leaks at flare joints, communication faults between units, dirty blower wheels, blocked condensate drains, and inverter board failures. Most of the leaks trace back to installation rather than to the equipment.
Why is my mini split not blowing cool air?
Check the mode and setpoint first, then the filter. Beyond that, a low charge from a leaking flare, a dirty outdoor coil, or a communication fault between the head and condenser are likeliest.
What is the lifespan of a mini split?
Well-installed systems commonly run 15 to 20 years, and poorly installed ones fail far sooner. Regular head cleaning matters more here than in most climates because of how much dust circulates.
Are mini splits good for heating?
Very good in this climate, where winters stay mild enough that the unit rarely reaches its balance point. Abbey Aire and Building Repair installs ductless heating throughout Benson, AZ and the surrounding communities.
What are the pros and cons of mini split systems?
Zoned control, no duct losses, quiet operation, and easy retrofit on the positive side. Visible indoor units, a higher cost per zone, and dependence on installation quality on the other.
HOW WE WORK
FROM SITE SURVEY TO A HELD VACUUM, HERE IS HOW.
STEP 01
Survey the Space
We measure the room, calculate its load, and walk the likely line set route. Wall construction, condenser location, drain path, and electrical availability all get settled before a system is proposed to you.
STEP 02
Select Within the Limits
Equipment is chosen so the planned line length, height difference, and combined zone capacity all sit inside the manufacturer's published envelope. Nothing gets ordered that the planned route cannot legitimately support in practice on the property.
STEP 03
Mount and Route
The indoor head is set level on a secure bracket, the wall penetration is cored and sleeved with a slight downward pitch, and the line set is run with continuous insulation and no kinks.
STEP 04
Flare, Torque, Pressure Test
Flares are cut square and torqued to the published value, then the circuit is pressurized with nitrogen and held. A pressure test before evacuation finds the joint that would otherwise leak all season.
STEP 05
Evacuate and Weigh In
The vacuum pump runs until the micron gauge reads below 500 and holds there for a full hour. Additional refrigerant is then weighed in per foot of line rather than added by pressure.
STEP 06
Commission and Demonstrate
The system is run in both modes, capacity and drainage verified, and the remote or wall control set up with you. Readings, warranty registration, and filter cleaning instructions are handed over together at the end.
GET YOUR ESTIMATE
MAKE THE ROOM THAT NEVER WORKED USABLE AGAIN.
One head, one line set, and a room that finally holds temperature. Send the details of the space through our contact page and Abbey Aire and Building Repair will survey it in Benson & Tucson, AZ.
WHAT YOUR DUCTLESS QUOTE COVERS:
- Room load calculated before equipment selection
- Line set route measured against published limits
- Nitrogen pressure test before evacuation
- Vacuum held below 500 microns for an hour
- Charge weighed in per foot of line
- A 1-year labor warranty on the installation
